studio status report: 2025-07

month 07 of 2025 was about readying the Studio WebAssembly assets for the new b-roll player API

Month 07 of 2025 was about readying the Studio WebAssembly assets for the new b-roll player API released last month. In so doing, the following NuGet packages were updated:

Songhay.Modules 8.0.1 📦🚀
Songhay.Modules.Bolero 8.0.3 📦🚀
Songhay.Modules.Publications 8.2.0 📦🚀

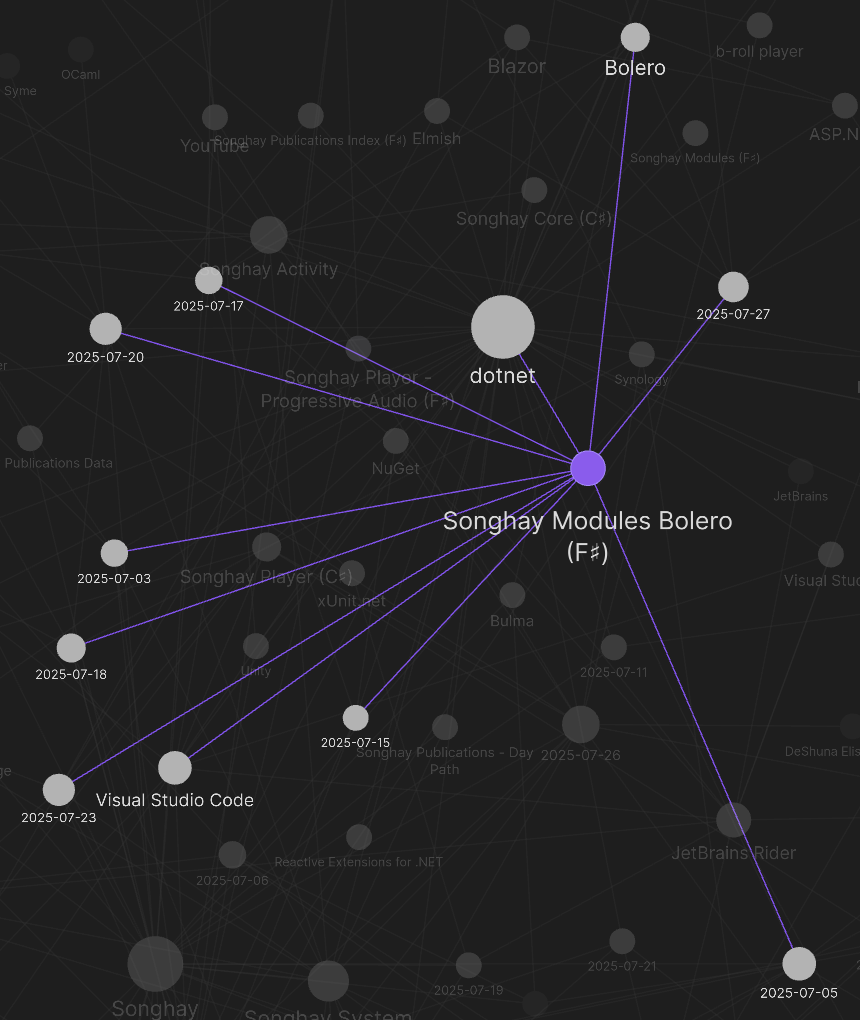

The Obsidian graph view sees seven days spent on Songhay.Modules.Bolero:

Obsidian graph view

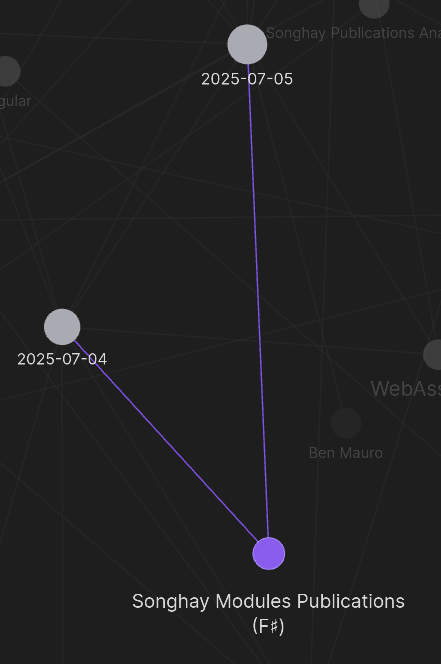

…only two days were taken for Songhay.Modules.Publications:

Obsidian graph view

…and the graph view sees nothing for Songhay.Modules; however, GitHub itself (#15) shows one day devoted. We have a total of nine days of Studio-work moments which is a four day increase over last month. Selected notes below should provide some color for the work done this month:

.NET (F♯): `List.choose` vs. `List.find`

The docs show quite clearly that List.find throws an exception while List.choose returns an empty list when the item in the list is not found.

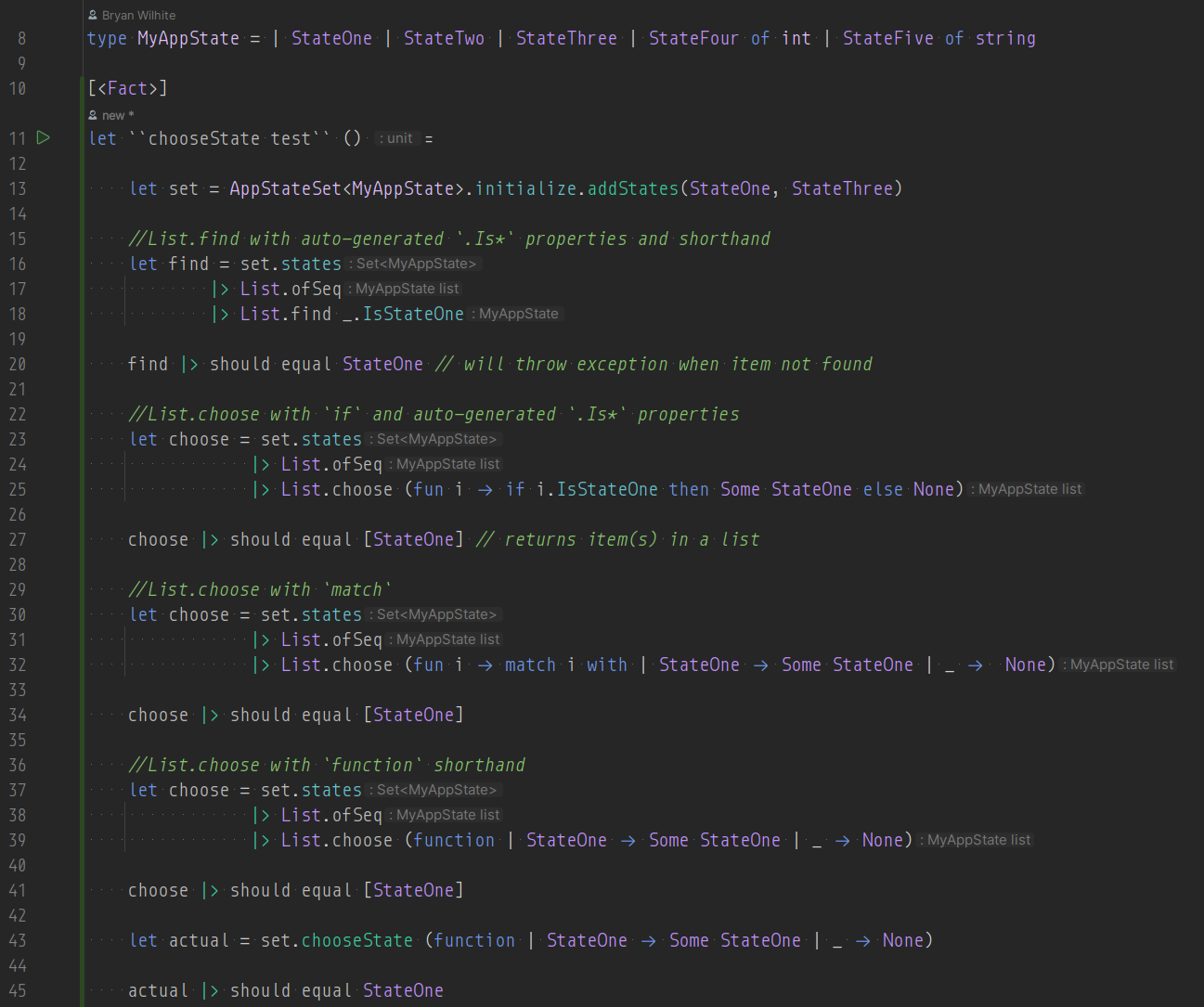

I have written a unit test for myself so that I do not forget a few things:

chooseState test

Lines 18 and 25: auto-generated .Is* properties (new in F♯ 9) [📖 docs ] might help to make the syntax understandable for beginners
Lines 32 and 39: a reminder of the function shorthand (see “F#: function keyword”)
Line 43 is the actual start of the test 😐

When I am feeling spiffy and fastidious, I should move lines 15 through 41 to a Jupyter Notebook #to-do

.NET AI: the Intent Integrity Chain 😐⛓

Using AI with TDD (to make something better than SpecFlow and Cucumber) promises to make machine-generated code far more reliable within the guide rails of a formal specification:

Junie Livestream 6: How to Survive AI with the Intent Integrity Chain by Baruch Sadogursky

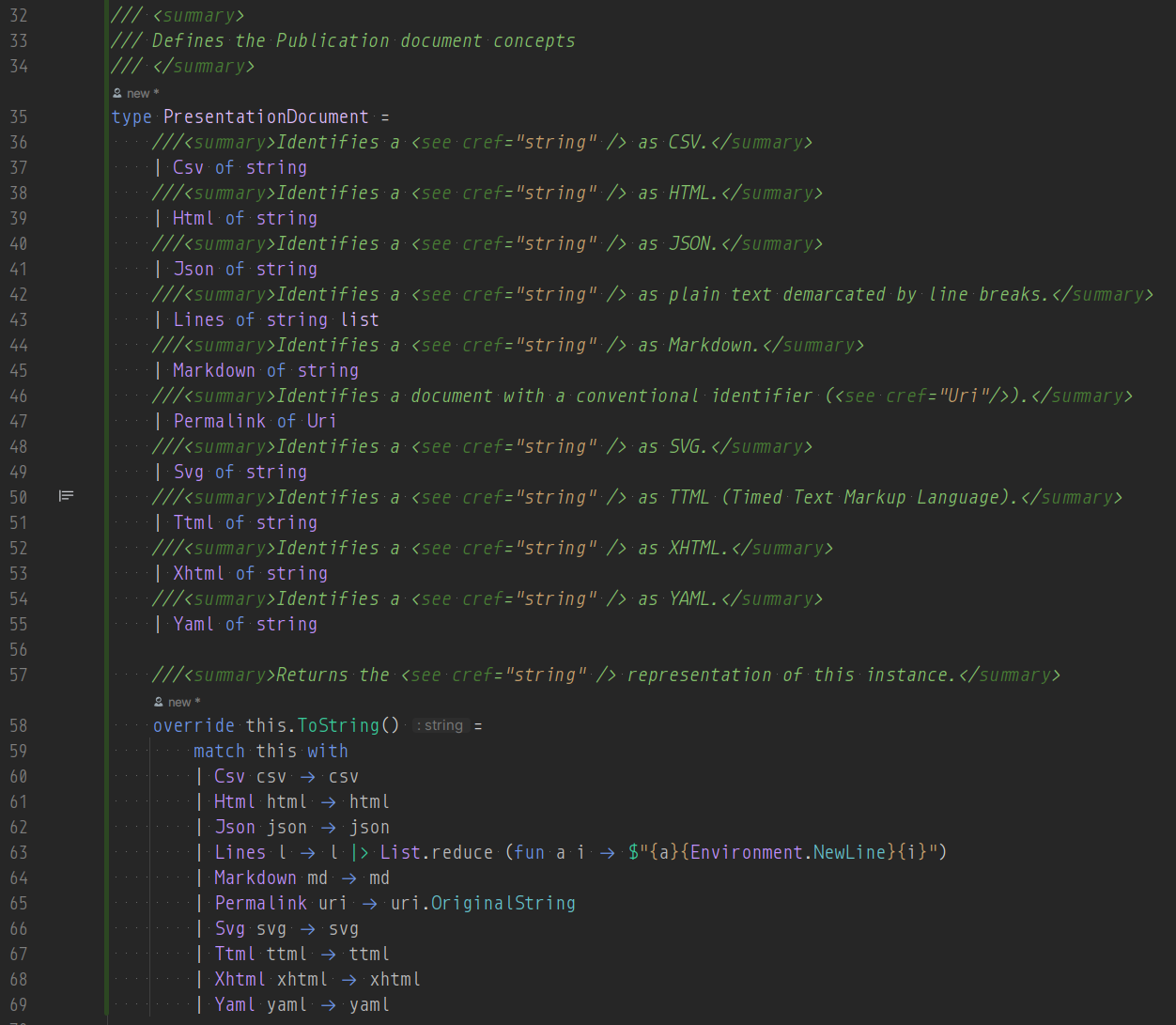

Songhay Modules Publications (F♯): the `PresentationDocument` identifies all possible client-side facing document formats used in this Studio 😐🧠💡

It looks like this now:

type

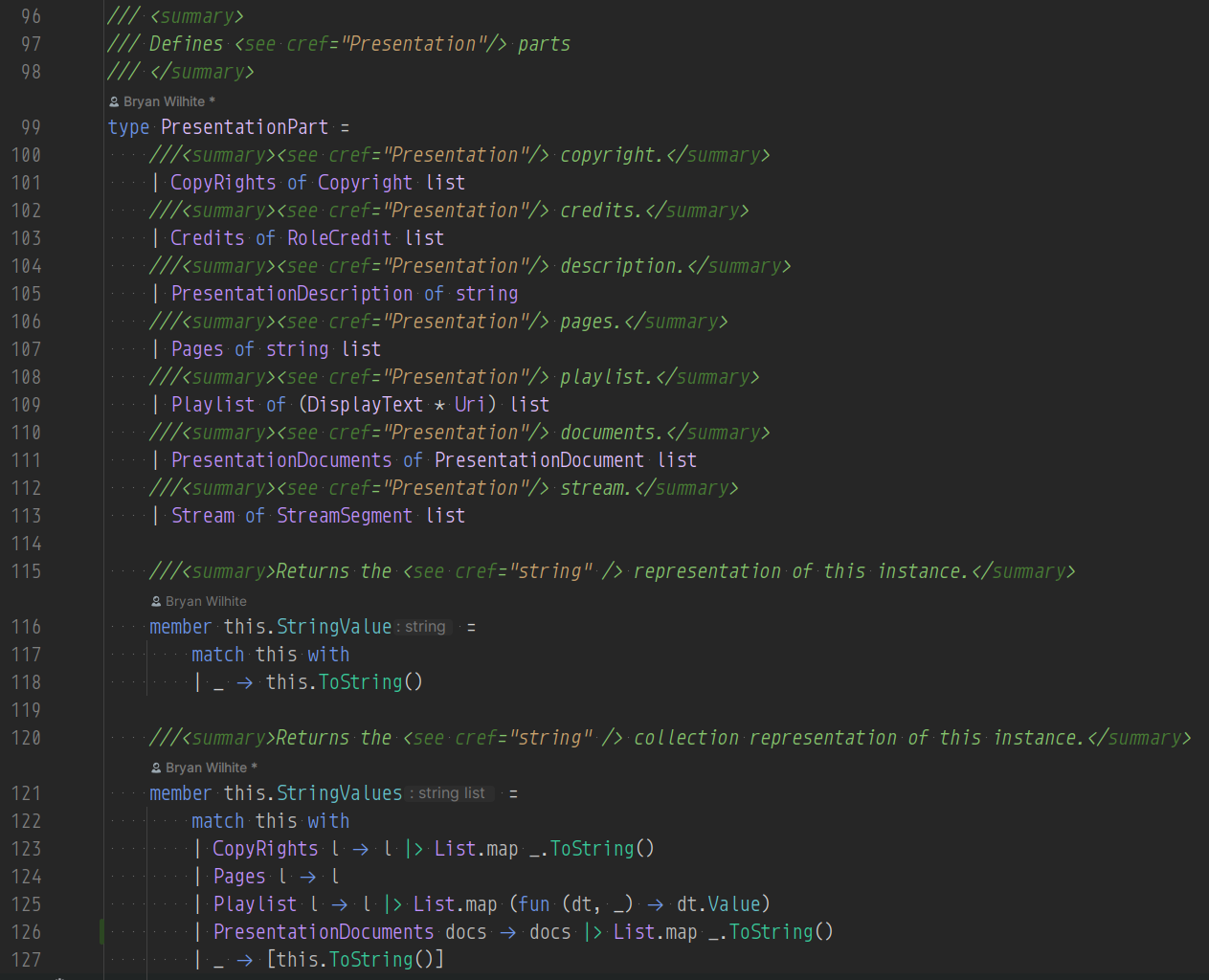

From the Studio-centric perspective, the only format ‘missing’ above is LaTeX and SGML 😐 This PresentationDocument needs to be used in the PresentationPart type:

the type

Staring at PresentationPart might lead to a question like:

[!question] Do the concepts behind Pages and Playlist clash/overlap the PresentationDocument concept?

The short answer is no.

One part of a Presentation can be a PresentationDocument of type Html that loads from the server—and then the client will transform that Html into Pages or a Playlist before rendering for display. A Playlist can be in many different PresentationDocument formats and pagination can be applied to many different PresentationDocument formats.

Alternatively, a part of a Presentation can be a PresentationDocument of type Html (etc.) that loads from the database server to be processed on the server side to add pagination and/or playlist concepts.

`FsToolkit.ErrorHandling` Error `FS3343`

Upgrading FsToolkit.ErrorHandling to 5.x broke the build:

Error FS3343 : The 'let! ... and! ...' construct may only be used if the computation expression builder defines either a 'Bind4' method or appropriate 'MergeSources' and 'Bind' methods

This must be because of changes to FsToolkit.ErrorHandling.ResultCE.result [🔗 GitHub ] such that this is no longer supported:

result {

    let! id = (useCamelCase, element) ||> Id.fromInput itemType
    and! name = (useCamelCase, element) ||> Name.fromInput itemType
    and! displayText =  (useCamelCase, element) ||> displayTextGetter itemType
    and! resourceIndicator =
        match resourceIndicatorGetter with
        | Some getter -> ((useCamelCase, element) ||> getter itemType)
        | _ -> Ok None

    return
        {
            id = id
            itemName = name.toItemName
            displayText = displayText
            resourceIndicator = resourceIndicator
        }
}

…my quick fix is to fall back to non-parallelism, causing a performance hit:

result {

    let! id = (useCamelCase, element) ||> Id.fromInput itemType
    let! name = (useCamelCase, element) ||> Name.fromInput itemType
    let! displayText =  (useCamelCase, element) ||> displayTextGetter itemType
    let! resourceIndicator =
        match resourceIndicatorGetter with
        | Some getter -> ((useCamelCase, element) ||> getter itemType)
        | _ -> Ok None

    return
        {
            id = id
            itemName = name.toItemName
            displayText = displayText
            resourceIndicator = resourceIndicator
        }
}

There appears to be one issue in the FsToolkit.ErrorHandling repo that recognizes my problem here: “Question: parallel async CE #333” The following comment sounds ominous:

…and! for the official async CE was rejected.

—https://github.com/demystifyfp/FsToolkit.ErrorHandling/issues/333#issuecomment-2969639301

…where the phrase “was rejected” suggests (to me) that the FsToolkit.ErrorHandling folks were not the cause of this breaking change.

ASP.NET feature in .NET 9.0: `MapStaticAssets` replaces `UseStaticFiles` ✨ #to-do

Map Static Assets can replace UseStaticFiles in most situations. However, Map Static Assets is optimized for serving the assets from known locations in the app at build and publish time. If the app serves assets from other locations, such as disk or embedded resources, UseStaticFiles should be used.

Map Static Assets (MapStaticAssets) also replaces calling UseBlazorFrameworkFiles in apps that serve Blazor WebAssembly framework files, and explicitly calling UseBlazorFrameworkFiles in a Blazor Web App isn't necessary because the API is automatically called when invoking AddInteractiveWebAssemblyComponents.

—“Static asset delivery in server-side Blazor apps”

This feature [📹 watch ] is highlighted in the following video:

What's New for ASP.NET Core & Blazor in .NET 9

Songhay Modules Publications (F♯): addressing #12

For #12, I recommend no work be done for this because:

The Songhay.Modules.Publications package is intended for client-side, WebAssembly usage. It should not duplicate the types in Songhay.Publications which relatively recently saw the addition of the following:

ImageCandidate [🔗 GitHub ]
ImageSize [🔗 GitHub ]
ResponsiveImage [🔗 GitHub ]

I currently assume that these ‘server-side’ types will be reduced to one of the PresentationDocument cases before appearing on the client-side (most likely JSON, HTML or XHTML). There should be no immediate need to process any type like the types listed above on the Client, specifically the Web Client.

Python: Toga is a Python native, OS native GUI toolkit.

Russell Keith-Magee, the leading contributor to Toga, presents:

How to build a cross-platform graphical user interface with Python - Russell Keith-Magee

Publications: Maximiliano Firtman promotes “vanilla” JavaScript

Vanilla Web: You Don't Need that Library - Maximiliano Firtman - NDC Oslo 2025

Publications: SDUI is an acronym from Netflix

With the goal of building a flexible, configuration-driven system, we looked to server-driven UI (SDUI) as an appealing solution. SDUI is a design approach where the server dictates the structure and content of the UI, allowing for dynamic updates and customization without requiring changes to the client application. Client applications like web, mobile, and TV devices, act as rendering engines for SDUI data. After our teams weighed and vetted all the details, the dust settled and we landed on an approach similar to Command Query Responsibility Segregation (CQRS).

—“Netflix Tudum Architecture: from CQRS with Kafka to CQRS with RAW Hollow”

Rivian: “Yes, Rivian uses Android Automotive OS to build its software experience” 😐💸

I am not happy about this:

Google’s Android Automotive software has been adopted by many carmakers for the EV era, but it tends to vary between different brands. This week Google and Rivian confirmed to 9to5Google that the EV-maker uses Android Automotive as the base of its software experience, something that was previously not known.

Rivian’s operating system powers the software experience on the Rivian R1T and R1S, and will also power the upcoming R2 and R3. The platform is specific to the company’s vehicles and controls virtually of the features in the EVs.

—“Yes, Rivian uses Android Automotive OS to build its software experience”

Songhay Modules Bolero (F♯): I am going to use `Regex` to parse my URI templates 😐

I am looking at what think is the ‘procured’ source code [🔗 GitHub ] for UriTemplate [📖 docs ] which was not migrated from the full .NET Framework and I am seeing a bunch of while loops and a ConcurrentDictionary<string, string>.

This Studio uses Tavis.UriTemplates [🔗 GitHub ] and that source code has dictionaries a foreach loop [🔗 GitHub ].

A “pure” F♯ approach might be related to the parsing libraries listed on Awesome F# but I am too uninformed to see anything there without an explicit example, “parsing” a URI “template.” My F# Snippets search brought up:

A Uri parser using the Cashel library [1]. This implementation is using ArraySegment as the underlying state, as I'm using it within a server, but it would be trivial to switch it to using a list. Also, note that I am not parsing the Uri into any specific structure, though that, too, would be trivial. For my current purposes, I just needed to validate the Uri. [1] https://github.com/panesofglass/cashel

—“Uri Parser”

…and I am not seeing a thing 😐

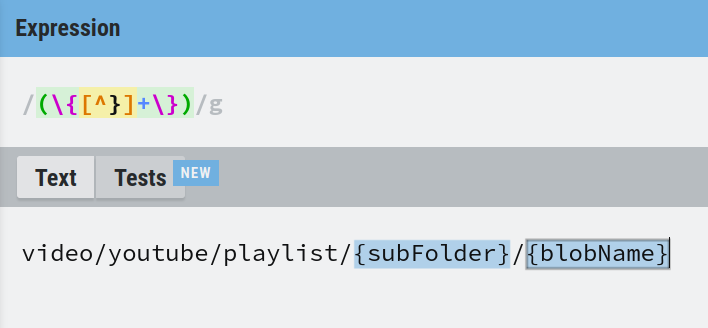

At this time, I can see this:

Regexer detail

…which means this expression is the equivalent of all of the looping above: /(\{[^}]+\})/g —I am sure there is a technical reason behind avoiding Regex. I look for ward to finding out about this later ⌛

Publications: “Tailwind is the Worst of All Worlds”

For reasons we'll get into later, Tailwind decided to burst on to the scene and become the default styling solution for all modern web development despite taking each and every one of these problems, exacerbating them, and applying them to places that didn't have them before. Lets see how Tailwind replicates CSS's main paradigms. Remember, inline styles let you control single element styles simply and fairly explicitly: style="background: red; color: blue;". Classes let you control multi-element styles simply, with the slight annoyance that it's easy to misspell your class name and spend way too long debugging before realizing it: class="todo-item".

Tailwind exclusively offers inline styles via classes. Classes are single strings separated by spaces, not key-value pairs. So the classes must be something like class="bg-red txt-blue". Key and value must be obscured into a plain string, lowering readability and writability. If you misspell one of these plain strings your editor is not going to tell you. You'll just have to find out once you get into the browser. Did you notice that txt-blue is wrong, and it should actually be text-blue? No? Get used to it, you'll make that mistake daily because Tailwind is inconsistent in how it names things.

—“Tailwind is the Worst of All Worlds”

Azure: KQL queries can be run from .NET workloads 😐🤓 #day-job #to-do

Microsoft.Azure.Kusto.Data [🔗 NuGet ] has been out there since 2019. The following docs serve as an intro:

“Set up your development environment to use Kusto client libraries”
“Create an app to run basic queries”
“KQL quick reference”

open pull requests on GitHub 🐙🐈

sketching out development projects

Eliminating Angular JS in the Studio is the top priority. Replacing the Angular JS app (http://kintespace.com/player.html) for the kinté space depends on:

generating a new index.html page with eleventy
supplementing the index with responsive images

Proposed future items:

complete upgrade to .NET 8.0
replace current b-roll player API with Azure Functions
switch Studio Publications from Material Design to Bulma 💄 ➡️ 💄✨
start Songhay.Modules.Bolero.Index project
generate responsive and social images with AI
